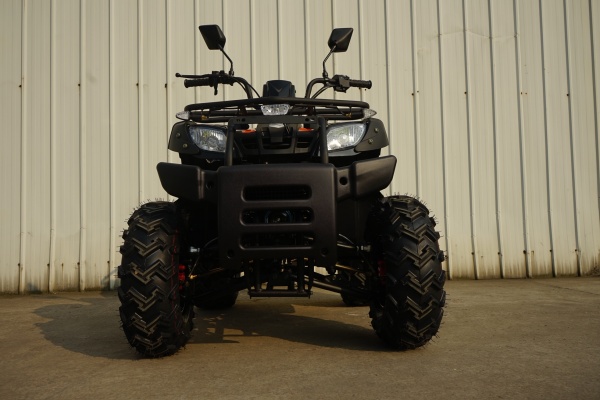

Kxd Pro 200cc Lion

Lion 200cc    EURO IV


Type: single-cylinder, air-cooling, 4-stroke

Ignition mode: CDI, EFI

Compression proportion:10:1

Start mode: Electric

Fuel tank capacity: 6.6L

Transmission mode: chain

Power: 7KW/7000 rpm

Max. torque :13/6000rpm

Min. ground clearance: 150mm

Max. speed ≥60km/h

Power source: 12V, 9Ah

Gear & Shift : CVT,Automatic with reversal gear

Cylinder size: 57.4×57.8mm

Engine oil: 0.9L

Lubrication: press splash

Displacement: 198ml

Parking: Mechanical lock

Gas cylinder number: 1


Front wheels: 21×7-10

Rear wheels: 20×10-10

Break type (F/R): Disc / Disc

Front hanging: Double arm-swing, Exterior double shock absorber balloon

Rear hanging: Independent rear hanging with differential gears


Product dimensions :1640*1100*1130mm

Carton dimensions:

Wheelbase: 1100mm

Height of seats: 800 mm

Dry weight: 175kg

Load capacity: 105kg

Climbing degree: ≥20°

Min. turning radius: 3200mm
